Flow switch technical specifications
|

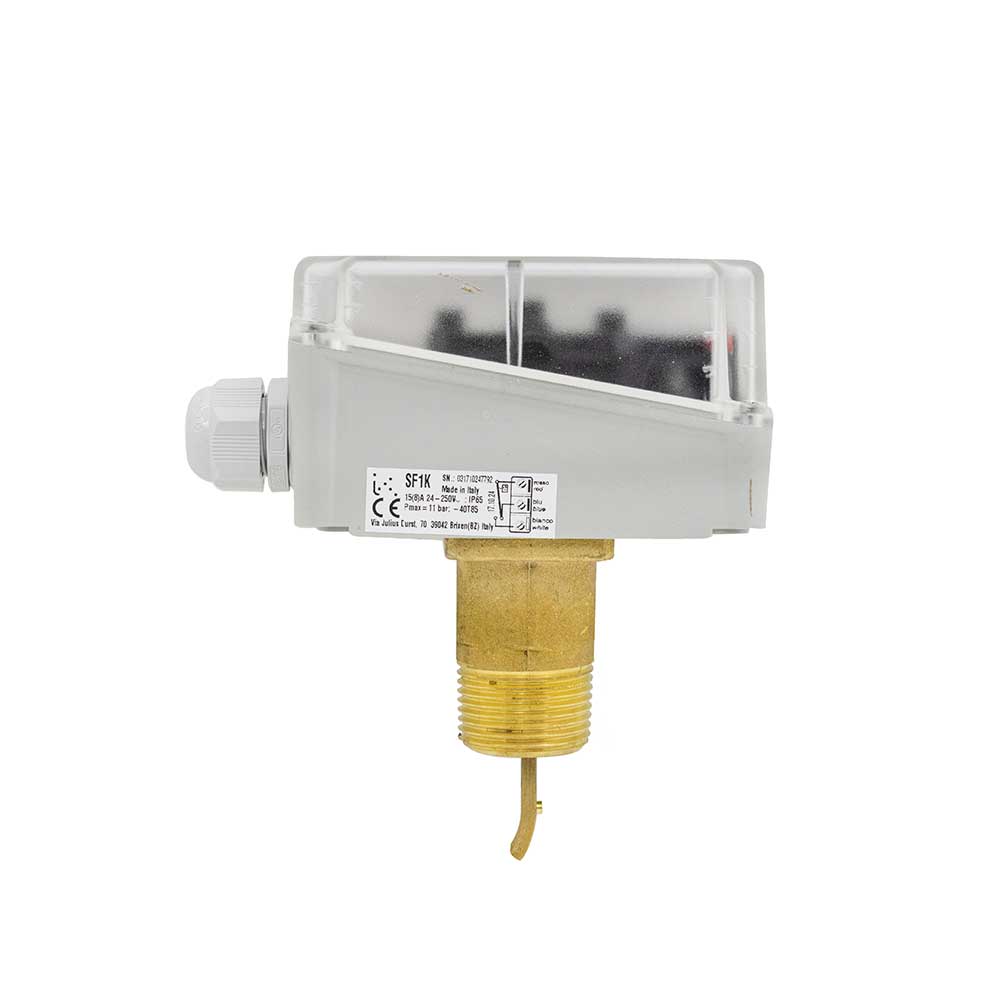

SF1K model IT pedal flow switch |
Model and manufacturer |
|
blade (pedal) |
Flowswitch type |
|
SS 316L |
Sensor material |
| SPDT contact |
Output type |
| "1 |
Connection size |
|
Brass |
Connection material |
|
Plastic |
body material |
|
vertical |
Installation type |
|
"1, "2, "3, "6 |
Pipeline size |
|
℃85⁓40- |
Process temperature |
| "1, "2, "3, "6 |
Pipeline size |
|
11 bar |
Process pressure |
|
15A, 24-250V |
Contact electrical characteristics |
|
Water, non-corrosive fluids |
Applications |
|
IP65 |
IP body protection degree |
|
does not have |
Explosion proof approval |
| Refer to the product catalog |
Functional range of the switch (increasing current) |
| Refer to the product catalog |
Functional range of the switch (decreasing current) |
