Features of surface transmitter(ultrasonic-radar-capacitive)

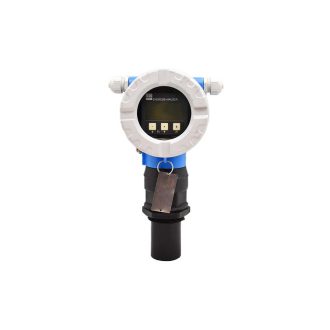

| Endress Hauser ultrasonic level transmitter model FMU41-ARB2A2 |
Model and manufacturer |
|
Ultrasonic |
Transmitter type |
|
Continuous, non-contact |
Type of measurement |
|
8 m |
Measuring range |
|
±0.2% |
Measurement accuracy |
|
has |
Display |
|
25 cm |
Minimum distance for measurement (Blocking distance) |
|
83 mm |
Sensor length |
| 50 |
Sensor diameter (mm) |
|
PVDF |
sensor material (wetted part) |
|
Aluminum |
Housing material |
|
℃80⁓40- |
Process temperature |
| .0.7-3bar Abs |
Process pressure |
|
NPT |
Connection type |
| "2 |
Connection size (inch) |
| PVDF |
Connection material |
| 14-35Vdc |
Power supply/electricity |
|
4-20mA (HART) |
Communication output/protocol |
|
Liquids, powder solids, paste |
Application |
|
IP68 |
body protection degree (IP) |
| does not have |
explosion proof (Ex) approval |
